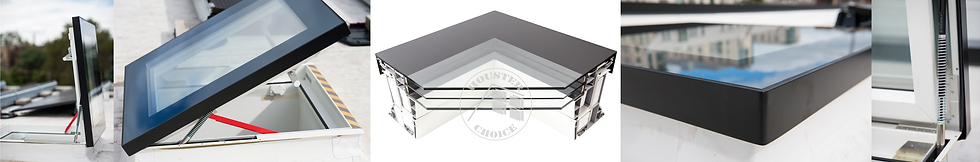

Flat Roof Access Skylight DRF DU6

Fakro DRF flat roof access skylight is an energy-efficient hatch that acts as a skylight while providing access to flat roofs. A special opening system of patented hinges and gas springs safely open the window and secure it in the open position at 80 degrees.

This window utilizes Fakro DU6 triple-pane glazing mounted on insulated multi-chamber PVC frame.

“Infinity glass” top surface design profile has a large glazing area with up to 16% more glass surface than standard frame designs.

Characteristics:

  • Energy-efficient DU6 glazing with UV filtering double chamber Low-E glass filled with argon gas

  • Integrated insulated curb (frame) made of multi-chamber PVC profile

  • Suitable for green roofs with the addition of an XRD frame extension base

  • Skylight is intended for a roof with a pitch between 2° and 15°

  • Internal and external accessories available

  • 10-year warranty

  • Integrated insulated curb (frame) made of multi-chamber PVC profile

DRF DU6

  • glazing U-value;0.09 BTU/h f2 F

  • glazing R-value; 11.36

  • window R-value; 8.11

  • glazing unit; 6H -18 - 4 H T-18 - 4 4. 2T, 6H-16-4HT-18-55.2T**

  • inert gas filled panels; argon

  • external glass toughened; +

  • internal glass laminated (safe); +

  • seals; two

flat access roof light equipped with DU6 glazing unit, featuring excellent insulation parameters

** Glazing unit structure for size 47 1/4" x 47 1/4 " (120 cm x120 cm)

Instructions

Installation Instructions:

Drawing:
